Landing Gear System
Have you ever looked out of an airplane window and marvelled at the complex machinery supporting the aircraft as it lands gracefully on the runway? The wheels, struts, and gears build up an aircraft’s landing gear system. They play a vital role in ensuring a safe touchdown. Imagine the intricate mechanisms working seamlessly to support the aircraft’s weight during take-off, landing, and taxiing.
This comprehensive guide will delve deep into this vital aspect of aviation technology. Let’s demystify the fascinating world of landing gear systems, unravelling their complexities step by step. Discover how these systems are engineered to withstand tremendous forces while providing stability and control. We have it covered, from the different types of landing gear designs to the maintenance practices that keep them operating smoothly. So, prepare to elevate your knowledge and appreciation for the mechanical mastery that keeps planes safely grounded.
Introduction to Landing Gear Systems
An essential element of an aircraft, the landing gear system, also known as the undercarriage, assumes the responsibility of carrying the airplane’s weight when it is not in flight. It is the first structure to touch the runway during landing and the last to part ways as the aircraft takes off.
At its core, a landing gear system comprises a structure that supports the aircraft while it is on the ground. This structure performs several essential functions, such as bearing the total aircraft weight during ground operations, providing traction, and absorbing the impact during take-off and landing.
Types of Landing Gear Systems
They normally include a variety of wheel layouts, including conventional, tandem, and tricycle types. Furthermore, landing gear systems can be fixed or retractable.
1. Fixed Landing Gear
As the name suggests, the fixed landing gear is permanently attached to the aircraft. It remains extended and exposed, whether the aircraft is on the ground or in the air. Fixed landing gear is simple to repair. It is used on small airplanes and constructed of two wheels that protrude outwards on inclined axles from the front-center part of the fuselage. While fixed landing gear is a simple, low-maintenance, and cost-effective solution, it has some significant downsides. For example, the stationary nature of the landing gear generates constant drag, limiting aerodynamics and reducing fuel economy.
2. Retractable Landing Gear
Retractable landing gear is a popular component caught on commercial airliners and high-altitude aircraft. This type of landing equipment can be folded or stowed inside the aircraft while in flight. One of the advantages of retractable landing gear is its ability to reduce drag, enhance aerodynamics, and improve the overall cruising speed and aircraft’s glide distance. Depending on the airplane structure, they can be operated electronically, manually, or hydraulically. The mechanism behind this type of landing gear typically involves a series of gear actuators, gear extensions, pumps, and gear switches. It is worth noticing that retractable landing gear adds weight to the aircraft, which is why they are mainly installed on commercial airliners or gigantic planes that can handle and maintain it. They are more complex and costly when compared with other types of landing gear.
3. Tricycle Landing Gear
Tricycle landing gear is the most general type in general aviation airplanes. They are particularly used for small to large-sized ones. They comprise two primary wheels positioned beneath the fuselage, with a third wheel typically located towards the front or nose of the aircraft. While tricycle gear may be slightly heavier when compared to other landing gear types, it offers numerous advantages for smaller aircraft. For instance, it enhances steering capabilities, promotes stability during take-offs and landings, and reduces the risk of ground loops. Fixed tricycle gear often includes fairings installed over each wheel to improve aerodynamics and overall speed. Also, tricycle gear can be retractable. The retractable tricycle gear designs involve the two main wheels retracting into the fuselage or under the wings while the front wheel retracts into the nose. Retractable tricycle gear aids in reducing drag and further enhancing aircraft performance.
4. Tandem Landing Gear
The tandem landing gear system is a configuration used in aircraft to provide stability and support during take-off, landing, and taxiing. This system consists of two landing gear units located one behind the other, with the forward unit typically positioned under the fuselage and the rear unit under the tail. The purpose of this arrangement is to distribute the weight of the aircraft evenly across both gear units, ensuring a balanced and stable landing. This configuration also allows for better maneuverability on the ground, as the airplane can pivot around the rear gear unit during taxiing.
5. Conventional Landing Gear
This type of landing gear, also known as a taildragger, features two main wheels towards the front of the aircraft and a smaller wheel or tailwheel at the rear. It provides good ground clearance, making it suitable for rough or unimproved runways.

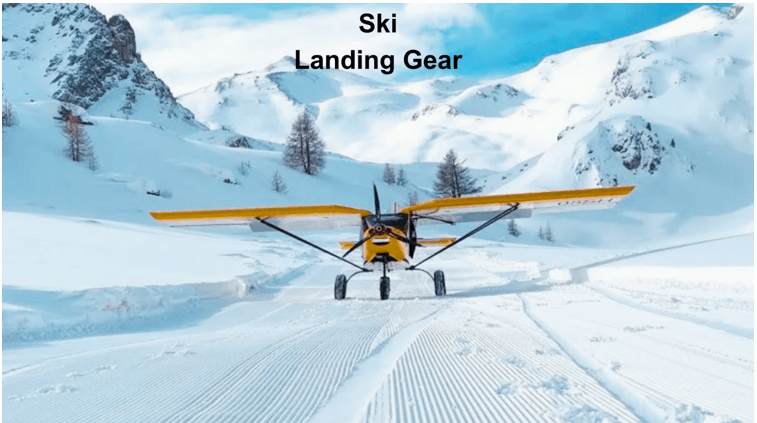

6. Floatplanes and Ski Landing Gear
Floatplanes replace traditional wheels with large floats or pontoons, enabling them to take off from and land on water. On the other hand, ski-equipped aircraft swap out traditional wheels for skis, allowing them to land on snow and ice.
7. Bogie Landing Gear
Bogie undercarriages are an essential component of an aircraft’s landing gear system. The word “bogie” refers to a set of wheels attached to a framework. It provides support and stability to the aircraft during take-off, landing, and taxiing. They are designed to distribute the aircraft’s weight evenly across multiple wheels, reducing the stress on individual tires and providing better traction and stability on various types of terrain. Commercial airliners typically have multiple bogie undercarriages noticed along the fuselage length, while smaller aircraft may have a single near the center of gravity. The number of wheels in a bogie can also vary, with larger aircraft usually having more wheels for increased stability.
Components of a Landing Gear System
The landing gear system consists of several components, including
Struts
Struts, also known as shock absorbers, are critical components that absorb the impact forces during landing. These are structural elements that connect the wheels to the aircraft’s body. They are typically filled with oil or air and have pistons moving within a cylinder.
Wheels
The contact point between an aircraft and the ground is established by its wheels. These wheels are typically crafted from resilient materials like steel or aluminium, ensuring their ability to withstand immense loads and high velocities.
Brakes
Brakes are essential to slow down and stop the aircraft during landing and taxiing. They are usually located on the main wheels and can be either drum-type or disc-type
Tires
Tires provide traction and contribute to the shock-absorbing function of the landing gear. They are usually filled with high-pressure nitrogen to withstand the heavy loads and high temperatures generated during landing.
Retraction Mechanism
The retraction mechanism is used in retractable landing gear systems to raise and lower the gear. It can be operated hydraulically, electrically, or pneumatically. It reduces drag and increases the aircraft’s speed during flight.
Shock Absorber
Located within the struts, they are designed to reduce the impact of landing and take-off on the aircraft’s body. These can be a spring or a hydraulic system that absorbs the energy generated by the impact of landing.
Anti – Skid System
The anti-skid system integrated into aircraft landing gear helps to prevent wheel skidding and locking during the landing process. By monitoring wheel speed and adjusting braking force, this system is essential for maintaining safety and control during critical phases of flight. It functions by continuously monitoring the rotational speed of each wheel and adjusting the braking pressure accordingly. It ensures the aircraft maintains optimal traction with the runway surface, even in challenging weather conditions. The primary purpose of the anti-skid system is to enhance braking efficiency while preventing wheel lock-up, which could lead to loss of control and potentially dangerous landing situations.
Materials Used in Landing Gear Construction
The construction materials used for landing gear systems must be high-strength, corrosion-resistant, and capable of enduring the forces and stresses of take-off, landing, and taxiing. These materials typically include
High-Strength Steel
Steel alloys, like 300M/S155 and 4340 Alloy Steel, are frequently employed in landing gear applications owing to their remarkable strength and resistance to fatigue.
Nickel Alloys
Nickel alloys such as Inconel, are commonly utilized in landing gear components like struts and shock absorbers. These alloys are highly known for their exceptional strength and corrosion resistance properties. With the capability to withstand high temperatures and mechanical stress, they are deemed suitable for the demanding operating conditions encountered during landing and braking.
Chromium
Chromium is known for its outstanding hardness, resistance to wear, and capacity to endure elevated temperatures. These characteristics establish chromium as a perfect material for vital parts like landing gear struts and axles, which face intense stress and friction. It contributes to the durability and dependability of these components, minimizing the chances of malfunction during landing maneuvers.
Titanium Alloys
Titanium alloys, such as Ti 6Al-4V (Grade 5) and Titanium Grade 2, are popular options for landing gear parts because of their high strength-to-weight ratio. They offer a weight-saving option without compromising on strength and robustness.
Understanding the Importance of Safe Take-offs and Landings
The successful execution of take-offs and landings is of utmost importance in aircraft operations. These pivotal instances demand unwavering concentration and meticulous arrangements. The landing gear system is the backbone of these protocols, enabling a secure and smooth transition from the ground to the sky and vice versa.
For take-offs, the landing gear system ensures that the aircraft is correctly aligned with the runway and has the required speed for lift-off. During landings, the pilot must carefully maneuver the aircraft to descend and touch down safely on the runway. This requires precise control of speed, altitude, and descent rate. Any miscalculation or mishandling can lead to a hard landing, runway overrun, or even a crash. The landing gear must also be in optimal condition to absorb the impact and ensure a smooth touchdown.
Understanding the Importance of Safe Take-offs and Landings
The successful execution of take-offs and landings is of utmost importance in aircraft operations. These pivotal instances demand unwavering concentration and meticulous arrangements. The landing gear system is the backbone of these protocols, enabling a secure and smooth transition from the ground to the sky and vice versa.
For take-offs, the landing gear system ensures that the aircraft is correctly aligned with the runway and has the required speed for lift-off. During landings, the pilot must carefully maneuver the aircraft to descend and touch down safely on the runway. This requires precise control of speed, altitude, and descent rate. Any miscalculation or mishandling can lead to a hard landing, runway overrun, or even a crash. The landing gear must also be in optimal condition to absorb the impact and ensure a smooth touchdown.
Common Issues with Landing Gear Systems
Landing gear can introduce specific complications like gear collapse, hydraulic failure, electrical failure, and gear jamming. Regular maintenance and inspections are crucial to avoid these potential problems and maintain the aircraft’s safety.
Maintenance and Inspection of Landing Gear Systems
Ensuring the landing gear system performs optimally requires regular maintenance and thorough inspections. These include visually checking for wear or damage, testing the extension and retraction of the gear, and applying lubrication consistently to prevent friction.
Choosing the Right Landing Gear System
Selecting the right landing gear system depends on several factors, including the aircraft’s intended use, design, and the environment it operates in. For instance, a taildragger may be suitable for short-field take-offs and landings on unprepared runways. At the same time, a tandem gear configuration could be ideal for high-altitude, long-endurance flights.
Conclusion
The landing gear system is a crucial component of an aircraft, playing a climacteric role in ensuring safe take-offs and landings. Understanding the various types of landing gear systems, their components, and the materials used in their construction can contribute significantly to the safety and efficiency of aircraft operation. Thus, comprehending the complexities of the landing gear system is of essential importance in the aviation industry.
